Model description

ULTImodel modules can be imported as functions in python scripts. Following the described model steps, ULTImodel produces:

an OD-Matrix in the form of an np.array for long-distance transport
a gpd.GeoDataFrame with network loads for short-distance transport

Model Steps

Input:

gpd.GeoDataFrame with TAZ for regarded countries
pd.DataFrame with target travel volumes per country
gpd.GeoDataFrame with population density (points)

Network Module:

Generate routable network per country
Aggregate total network length for subordinate network per TAZ
Connect international road network
Set connector points for TAZ based on population density

GenerationData Module:

Generate attraction and trip generation indices per TAZ
Calculate country attributes for international classification
Generate cost matrices between TAZ using the previously defined connector points

Distribution Module

Determine target values for VKT (vehicle kilometres travelled) for different transport types
Long-distance distribution of traffic to create OD trip matrix
Short-distance distribution of traffic to create road network with traffic loads for inner cell travel
International distribution of traffic to create OD trip matrix

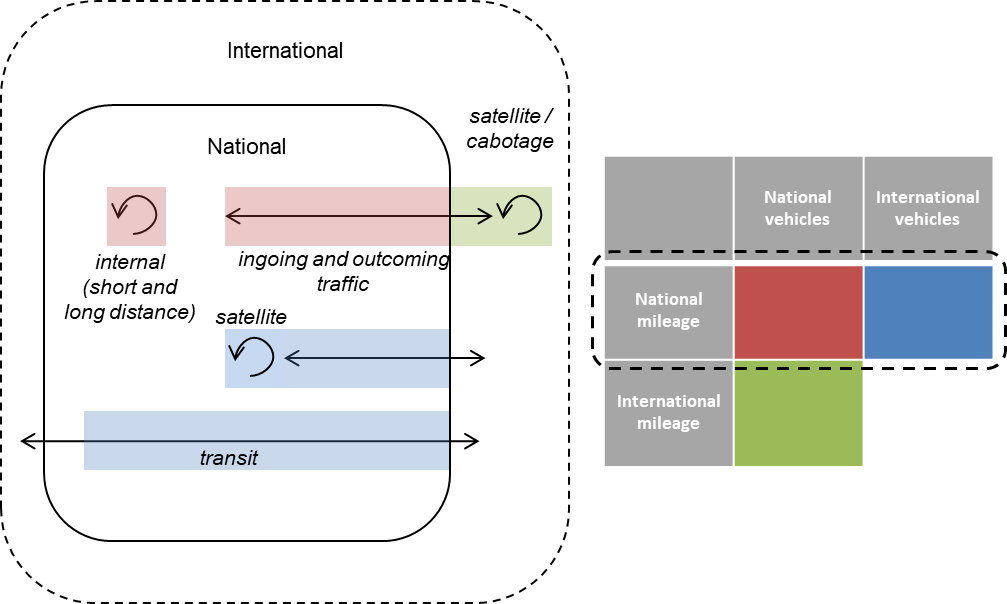

Transport types

ULTImodel differentiates between 4 transport types:

National	International
short distance	import-export (incoming, outgoing)
long distance	transit

Types

National long-distance travel

This type includes trips that are longer than 30km for cars and 50km for trucks, thus is distributed between TAZ using a gravity model and cost matrices (travel times, distances). The result is an OD trip matrix as np.array, which can be assigned to the road network using traffic assignment software.

The OD trip matrix is created using a gravity model, which was developed using microscopic trip data sets for Germany. While the parameters can be adjusted, the general structure of the distribution functions is currently not flexible.

National short-distance travel

In ULTImodel, short-distance trips are defined as inner cell trips. In order to distribute these, there are two different options:

Equal distribution on the road network, weighted by road type
Gravity model between TAZ connector points and shortest-path assignment on the road network (not available in v1.0)

The result of the short-distance distribution is a gpd.GeoDataFrame of the road network including traffic loads.

International travel

In this step, both import-export and transit VKT are distributed using a gravity model. The difference to national long-distance travel is that all inner-country relation are blocked. The result is an OD trip matrix as np.array, which can be assigned to the road network using traffic assignment software.

Modes

Currently, ULTImodel is calibrated to distribute road-based transport. There, both personal and freight transport are regarded. Freight transport is further split into the three segments, leading to a total of four modes:

car
LCV (light commercial vehicles)
MFT (medium freight transport)
HFT (heavy freight transport)

While determining the target VKT, tkm shares and average loads per segment are regarded. They can be adjusted as part of the target method.

Target values

ULTImodel uses target values in the form of person kilometers traveled (PKT) and tonne kilometers (tkm) on a national scale. These have to be provided as an external input and are currently not calculated as part of the model. They include all travel volumes within a country, i.e national travel by national and international vehicles.

For the distribution of the different modes and transport types, the total travel volumes are split among the different types (national long- and short-distance, international OD and transit). This is based on a categorization of countries based on geospatial attributes influencing border-crossing road-based transport, like the share of land borders or number of neighbor countries.

For freight transport, average travel distances for the transport types are derived based on a country's area. Further, the share of different vehicle categories (like light, medium and heavy freight vehicles) and their respective loads are used to generate total vehicle trips per segment. The vehicle types and their shares and loads can be defined in the function parameters. As a result, transport type targets fo freight are transformed to vehicle kilometers traveled (VKT) and trips.

Personal transport type targets are given in PKT (i.e. the unit of the overall input target) and transformed to vehicle kilometers traveled (VKT) using occupancy rates in the distribution functions.

Gravity model structure

The main structure of the gravity model for long distance and international transport can be described as

Type	Formula	Cost Function
Personal transport	$T_{ij} = (O_{i} D_{j})^{\alpha} f(c_{ij})$	$f(c_{ij}) = c^{\gamma}$
Freight transport	$T_{ij} = \alpha O_{i} D_{j} f(c_{ij})$	$f(c_{ij}) = exp(-\beta c_{ij})$

with $O_{i}$ and $D_{j}$ being attraction factors of the origin and destination cells. With ULTImodel, it is possible to select an individual attribute or create an attraction index consisting of population and industrial areas (from OSM). The balancing factor $\alpha$ can have different values for each cell or country and can even depend on the cell being an origin or a destination.

The cost of travel can be measured in travel time or distance. The cost function $f(c_{ij})$ is thus a decreasing function of the travel times and distances, implying that higher distances and times make a destination less attractive. In the cost function, $c_{ij}$ is the distance or travel time between the cells i and j. The $\beta$ and $\gamma$ parameters can be estimated using trip distance distributions.

Attraction index

ULTImodel offers to calculate population per TAZ based on a point layer, which can be used as attraction factors. Furthermore, there is another function available extracting industrial areas from OSM and combining them with population to form an attraction index. The index is calculated with a Cobb-Douglas function:

$I_{ij} = \beta * pop^{\alpha_{1}} * A_{ind}^{\alpha_{2}} * n_{ind}^{\alpha_{3}}$

$\sum_{i} \alpha_{i} = 1$

with

Variable
$\beta$	optional scaling factor
$\alpha_{1},\alpha_{2},\alpha_{3}$	parameters for population, industrial area and number of sites
$pop$	population per zone
$A_{ind}$	aggregated industrial area per zone
$n_{ind}$	number of industrial sites per zone

The values for population, industrial area and number of industrial sites are the relative values compared to the mean of the regarded region.

Trip generation

With the result of the gravity model being an OD trip matrix, we need a number of trips to distribute. Currently this is done in two different ways for personal and freight transport.

Personal transport

For personal transport, the population of each TAZ is multiplied with a mobility rate to derive total trips per cell. The mobility rate is an input parameter of the distribution function and can be calibrated using trip data sets. After distributing the trips, the total VKT is calculated using the trip and distance matrix. Then, a scaling factor is applied to the trip matrix to match the target VKT.

Freight transport

For freight transport, the total number of trips based on the target tonne-kilometers is derived using average loads and trips distances. To generate trips per TAZ, the attraction index per TAZ is used to derive an attraction share for each TAZ. This is then multiplied with the total number of trips to generate trips per TAZ.
